SWV Series
.jpg "SWV Series")
.jpg "SWV Series")
.jpg "SWV Series")
產品介紹

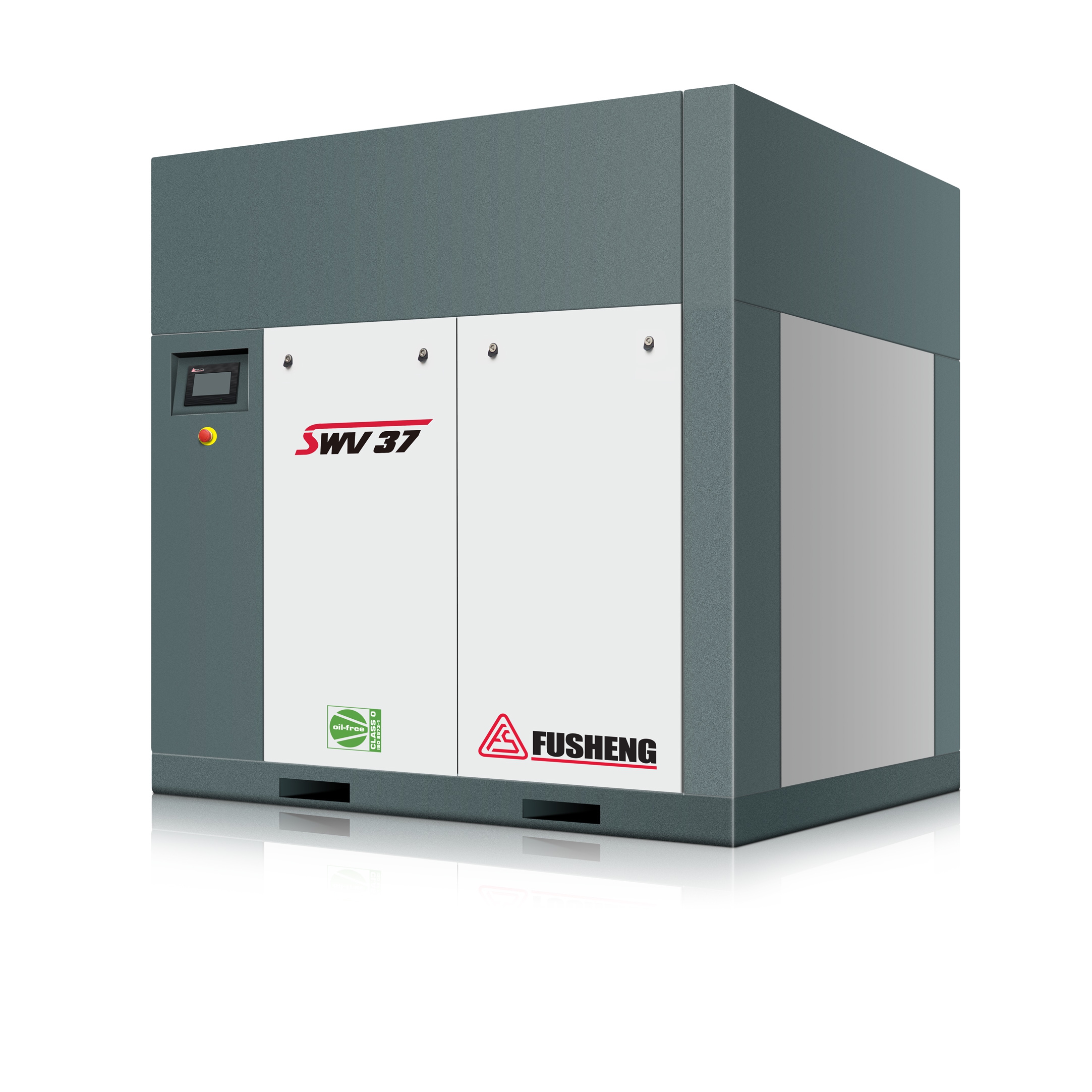

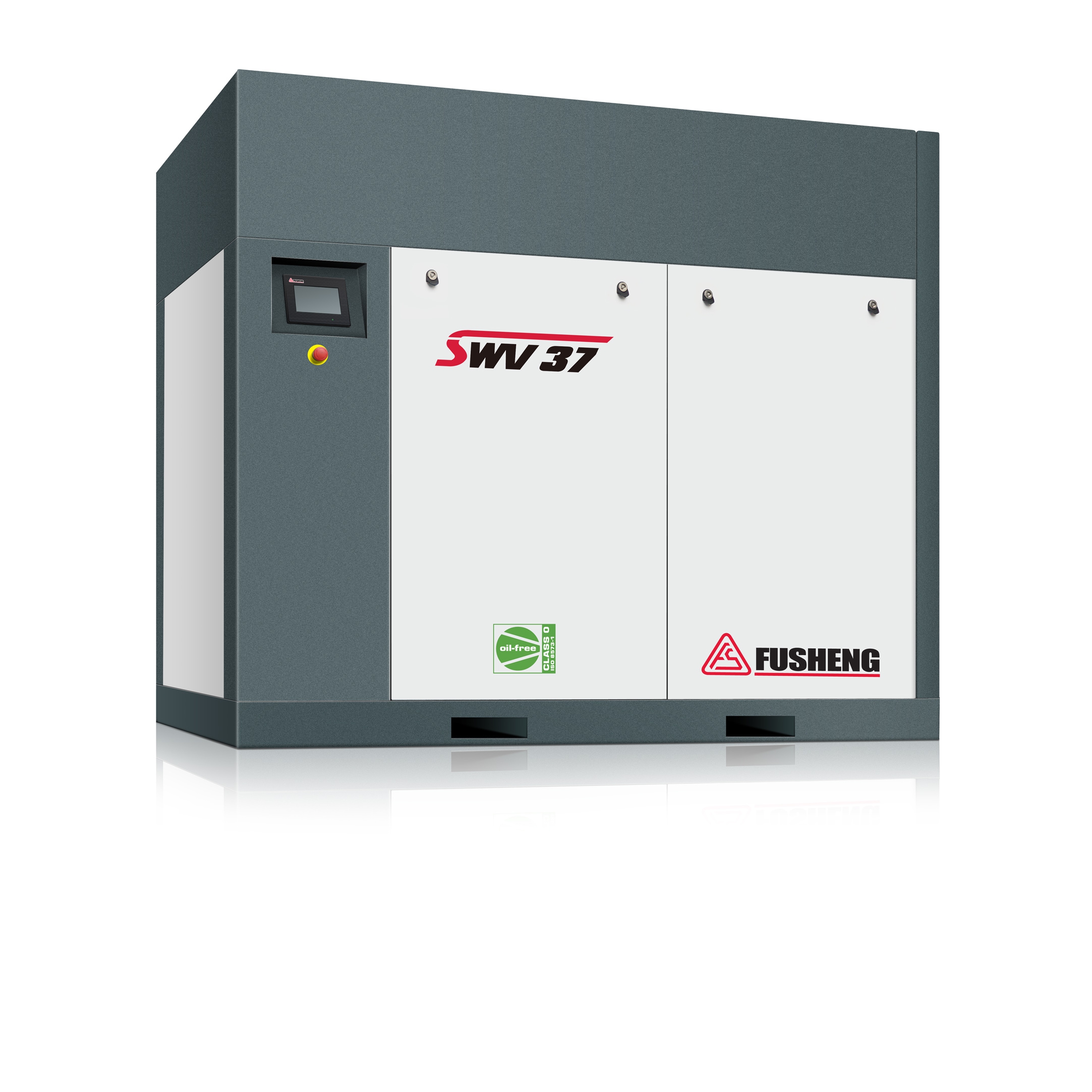

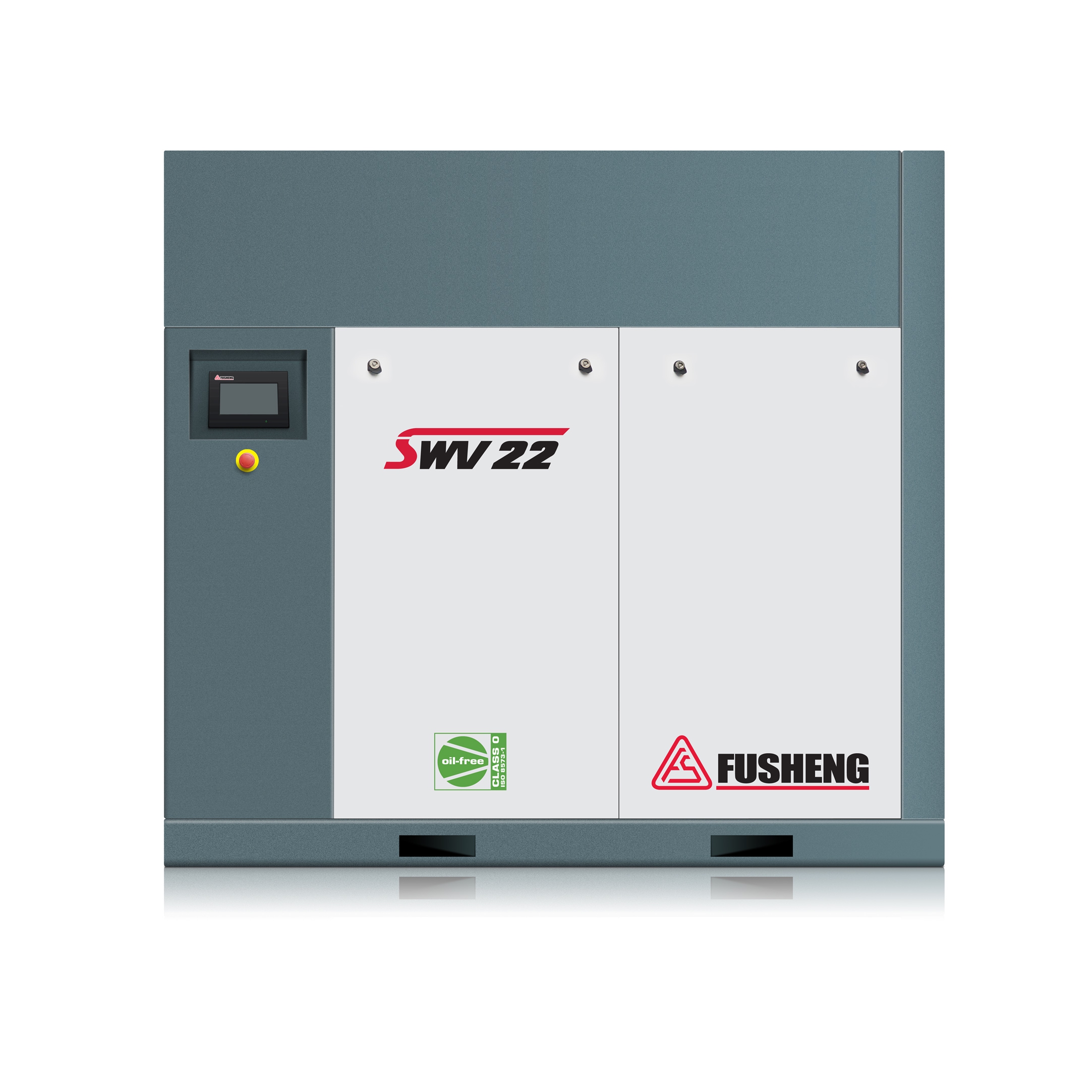

SWV系列使用合乎飲水標準之潤滑水，而非使用潤滑油。機器更是含有高性能水過濾器進一步過濾雜質，希望能提供用戶無油及潔淨之壓縮空氣。
SWV系列潤滑水有密封、冷卻及潤滑三大功用，減少轉子間隙壓縮空氣回漏及額外馬力消耗，確保空氣之有效壓縮，每單位馬力之風量較一般乾式壓縮機提高15%。
SWV系列使用機體，不論是空氣品質，能源節約及高可靠度，皆證明其先進的技術品質，空氣與水的相容性及其易取得，將成為未來空壓機市場之趨勢。
SWV系列潤滑水有密封、冷卻及潤滑三大功用，減少轉子間隙壓縮空氣回漏及額外馬力消耗，確保空氣之有效壓縮，每單位馬力之風量較一般乾式壓縮機提高15%。
SWV系列使用機體，不論是空氣品質，能源節約及高可靠度，皆證明其先進的技術品質，空氣與水的相容性及其易取得，將成為未來空壓機市場之趨勢。
| 機型 | 工作壓力 (kg/c㎡G) |
排氣量 (m³/min) |
馬力 HP(kw) |
電壓 (V) |
重量 (kg) |
體積 (mm) |
| SWV15A | 7 | 2.2 | 20 (15) | 220/380/440 | 970 | 1900x1100x1750 |
| SWV15A | 8 | 2.1 | 20 (15) | 220/380/440 | 970 | 1900x1100x1750 |
| SWV15A | 9 | 2 | 20 (15) | 220/380/440 | 970 | 1900x1100x1750 |
| SWV22A | 7 | 3.4 | 30 (22) | 220/380/440 | 1000 | 1900x1100x1750 |
| SWV22A | 8 | 3.1 | 30 (22) | 220/380/440 | 1000 | 1900x1100x1750 |
| SWV22A | 9 | 3 | 30 (22) | 220/380/440 | 1000 | 1900x1100x1750 |
| SWV30A | 7 | 4.7 | 40 (30) | 220/380/440 | 1370 | 2100x1200x1850 |
| SWV30A | 8 | 4.4 | 40 (30) | 220/380/440 | 1370 | 2100x1200x1850 |
| SWV30A | 9 | 4.3 | 40 (30) | 220/380/440 | 1370 | 2100x1200x1850 |
| SWV37A | 7 | 5.8 | 50 (37) | 220/380/440 | 1400 | 2100x1200x1850 |
| SWV37A | 8 | 5.3 | 50 (37) | 220/380/440 | 1400 | 2100x1200x1850 |
| SWV37A | 9 | 5 | 50 (37) | 220/380/440 | 1400 | 2100x1200x1850 |
| SWV30W | 7 | 1.4 | 30 (40) | 220/380/440 | 1170 | 2100x1200x1400 |
| SWV30W | 8 | 4.4 | 30 (40) | 220/380/440 | 1170 | 2100x1200x1400 |
| SWV30W | 9 | 4.3 | 30 (40) | 220/380/440 | 1170 | 2100x1200x1400 |
| SWV37W | 7 | 5.8 | 50 (37) | 220/380/440 | 1200 | 2100x1200x1400 |
| SWV37W | 8 | 5.3 | 50 (37) | 220/380/440 | 1200 | 2100x1200x1400 |
| SWV37W | 9 | 5 | 50 (37) | 220/380/440 | 1200 | 2100x1200x1400 |
| SWV55W | 7 | 9.5 | 75(55) | 220/380/440 | 1700 | 2500x1400x1500 |
| SWV55W | 8 | 8.8 | 75(55) | 220/380/440 | 1700 | 2500x1400x1500 |
| SWV55W | 9 | 8.1 | 75(55) | 220/380/440 | 1700 | 2500x1400x1500 |
| SWV75W | 7 | 12.3 | 100(75) | 220/380/440 | 1850 | 2500x1400x1500 |
| SWV75W | 8 | 11.8 | 100(75) | 220/380/440 | 1850 | 2500x1400x1500 |
| SWV75W | 9 | 11.3 | 100(75) | 220/380/440 | 1850 | 2500x1400x1500 |
| SWV90W | 7 | 12.3 | 120(90) | 220/380/440 | 2900 | 3200x1500x1700 |
| SWV90W | 8 | 11.8 | 120(90) | 220/380/440 | 2900 | 3200x1500x1700 |
| SWV90W | 9 | 11.3 | 120(90) | 220/380/440 | 2900 | 3200x1500x1700 |
| SWV120W | 7 | 19.7 | 160(120) | 220/380/440 | 3000 | 3200x1500x1700 |
| SWV120W | 8 | 19.2 | 160(120) | 220/380/440 | 3000 | 3200x1500x1700 |
| SWV120W | 9 | 17.5 | 160(120) | 220/380/440 | 3000 | 3200x1500x1700 |
